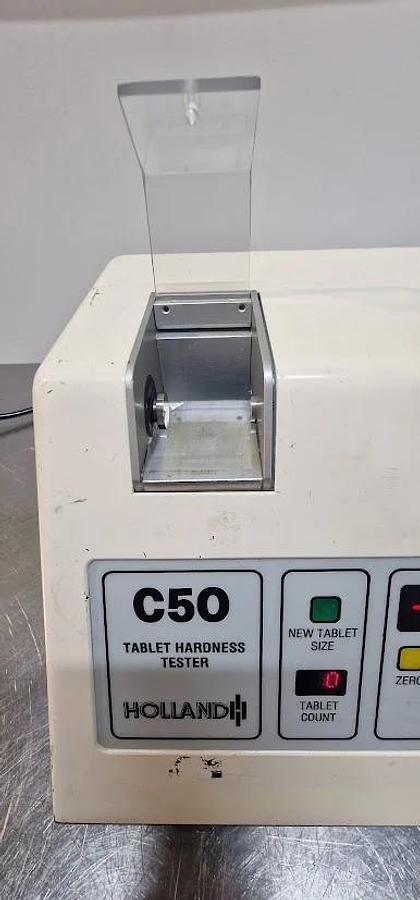

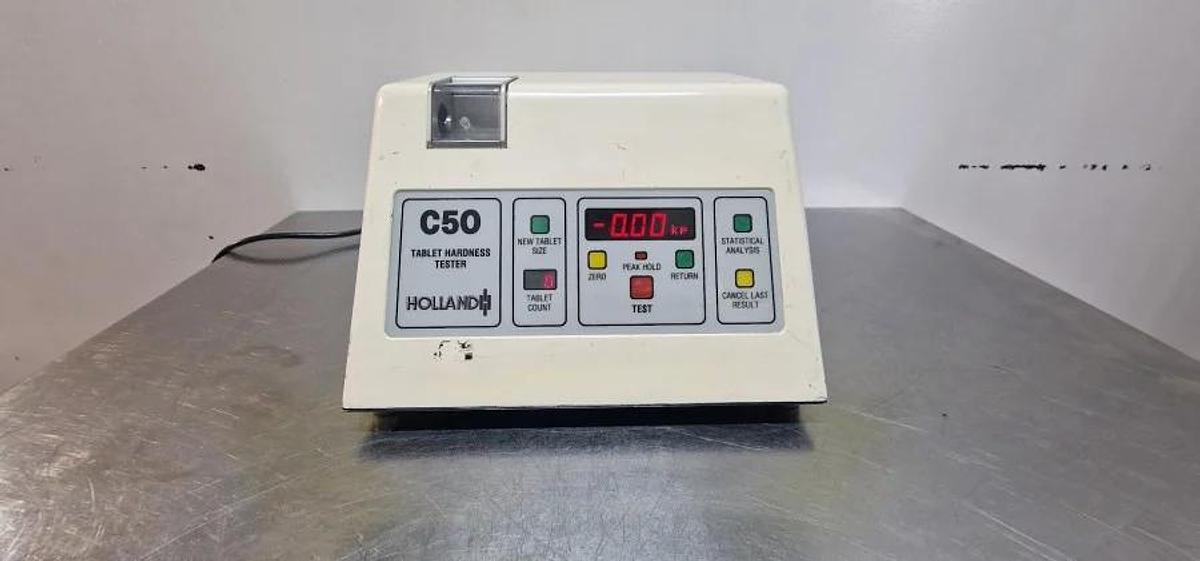

Tablet Hardness Tester

I Holland C50 is a horizontal loading, Tablet hardness testing machine. Easy to use, it has been specifically designed for tablet hardness testing in a factory environment.

The tablet is placed between the two jaws (platen and plunger). The left hand platen is stationary and is attached to a precision strain gauged load cell. The right hand plunger is motorized and crushes the tablet between the jaws when the test is commenced. Tablet fracture is automatically detected and the fracture load (hardness) is displayed on the digital display. Meanwhile the plunger returns to its preset position and the printer prints the hardness data. The tablet fragments are collected in a drawer situated underneath the loading platform. When testing of the batch is complete the STATISTICS button can be pressed and the statistical data is printed by the printer.

Features:

Machine dimensions:

Width: 300mm, Depth: 290mm,
Height: 180mm
Machine weight: 12kg
